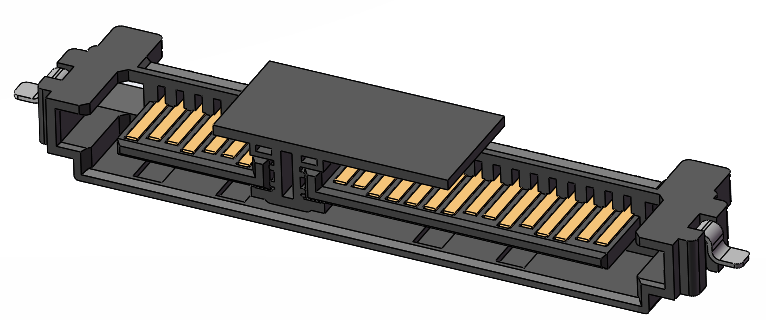

SATA 7+15

Product Specifications:

Insertion Force: 45N Max

Insulation Resistance: 1000MΩMin

Pull-out force: 10N Max

Rated voltage: 5V DC

Service life: 500 cycles

Rated current: 1.5Amperes Max

Contact Resistance: 30mΩ Max

Withstand Voltage: 500 V AC(RMS)

Main functions and uses:

The main function is data transfer between the motherboard and a large number of storage devices;

It is used for data transmission between hard disks, optical disk drives, etc. and the motherboard.

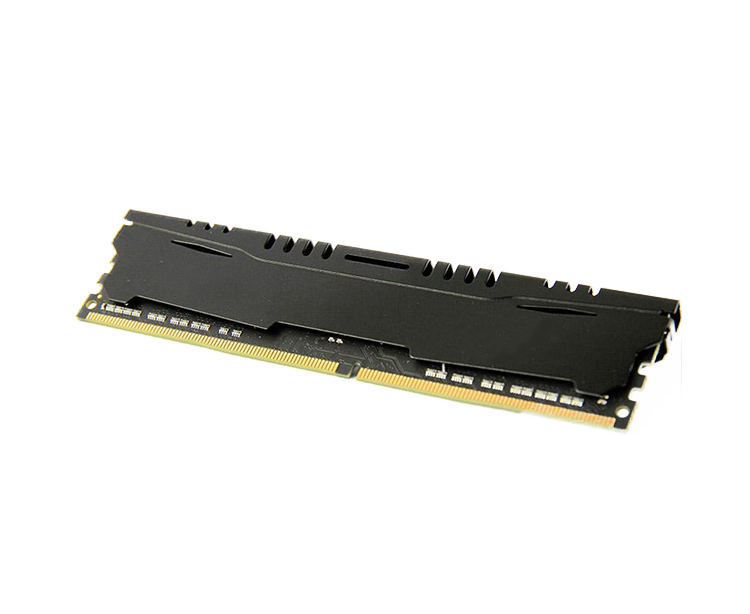

DDR4 series

Product Specifications:

228PIN

Main functions and uses:

The main function is to specify the address, data input and output;

It is used for data transmission between the memory and the main board of equipment such as PCs and servers.

Image source: Baidu Gallery, for reference only.

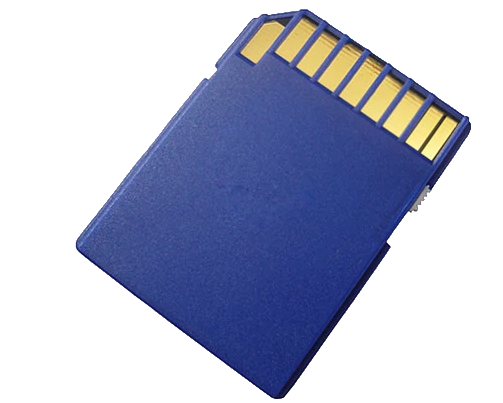

SD CARD

Product Specifications:

Plug and unplug durability test: 10,000 times

Switch thrust test 0.4N ~ 5.0N

Main functions and uses:

The main function is high-speed storage;

Used in portable devices: high-speed data transmission of SD memory cards in digital cameras, personal digital assistants (PDAs), and multimedia players.

The picture is the picture of the application terminal product (source: Elements), for reference only.

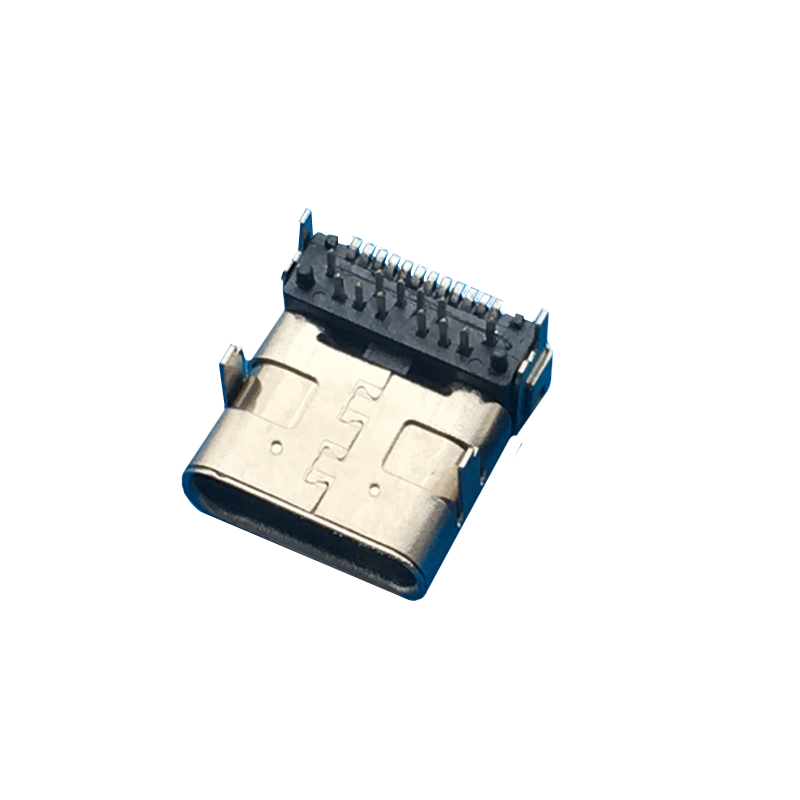

Type C series

Product Specifications:

Insertion force: 5-20N

Insulation resistance: 100MΩMin

Pull-out force: 8-20N (6-20N after life)

Rated voltage: 20 V DC

Service life: 10000 cycles

Rated current: 3&5 Amperes Max

Contact Resistance: 40mΩ Max

Withstand Voltage: 100 V AC(RMS)

Main functions and uses:

The main functions are charging, display, data transmission, etc., full PIN full function;

It is applied to data transmission between devices such as mobile solid-state drives (PSSD).

Type C series

Product Specifications:

Insertion force: 5-20N

Insulation resistance: 100MΩMin

Pull-out force: 8-20N (6-20N after life)

Rated voltage: 20 V DC

Service life: 10000 cycles

Rated current: 3&5 Amperes Max

Contact Resistance: 40mΩ Max

Withstand Voltage: 100 V AC(RMS)

Main functions and uses:

The main functions are charging, display, data transmission, etc., full PIN full function;

It is applied to data transmission between devices such as mobile solid-state drives (PSSD).
